Estate

The most complete suite we build

Heritage doubled: two ultrafiltration membranes feeding four carbon blocks. The same three-stage treatment — organisms and sediment, then chemicals and PFAS, then dissolved metals at the tap — at 30 GPM and over a million gallons of post-filter capacity.

$13,981

Equipment only · Wellspring RO included

Every system ships with its owner's manual and full installation instructions. The fit is carried out by a licensed plumber you engage — any licensed plumber, no specialist certification and no proprietary tooling. Their labor is quoted and invoiced by them rather than by us, and if you do not already have someone, ask and we will give you names in your area.

Buying here also unlocks monthly payments. Ordering the system online is how you use the payment options through Affirm. We are on the phone for questions about the equipment and about sizing. Call or text (918) 359-5921, or email us, for more information.

Built to order. Systems are manufactured rather than held on a shelf, so allow up to six weeks. We confirm the date when the order is placed.

Book a free water walkthrough Or talk it through on a call

Already know what you need?

Equipment only, shipped to you. We recommend this route for plumbers, water treatment technicians and builders who have already sized the job. If you are a homeowner, spend fifteen minutes with us first — it costs nothing and it is the difference between buying once and buying twice.

Sizing is confirmed at your tap before anything is ordered when you book a walkthrough.

Estate — Front elevation

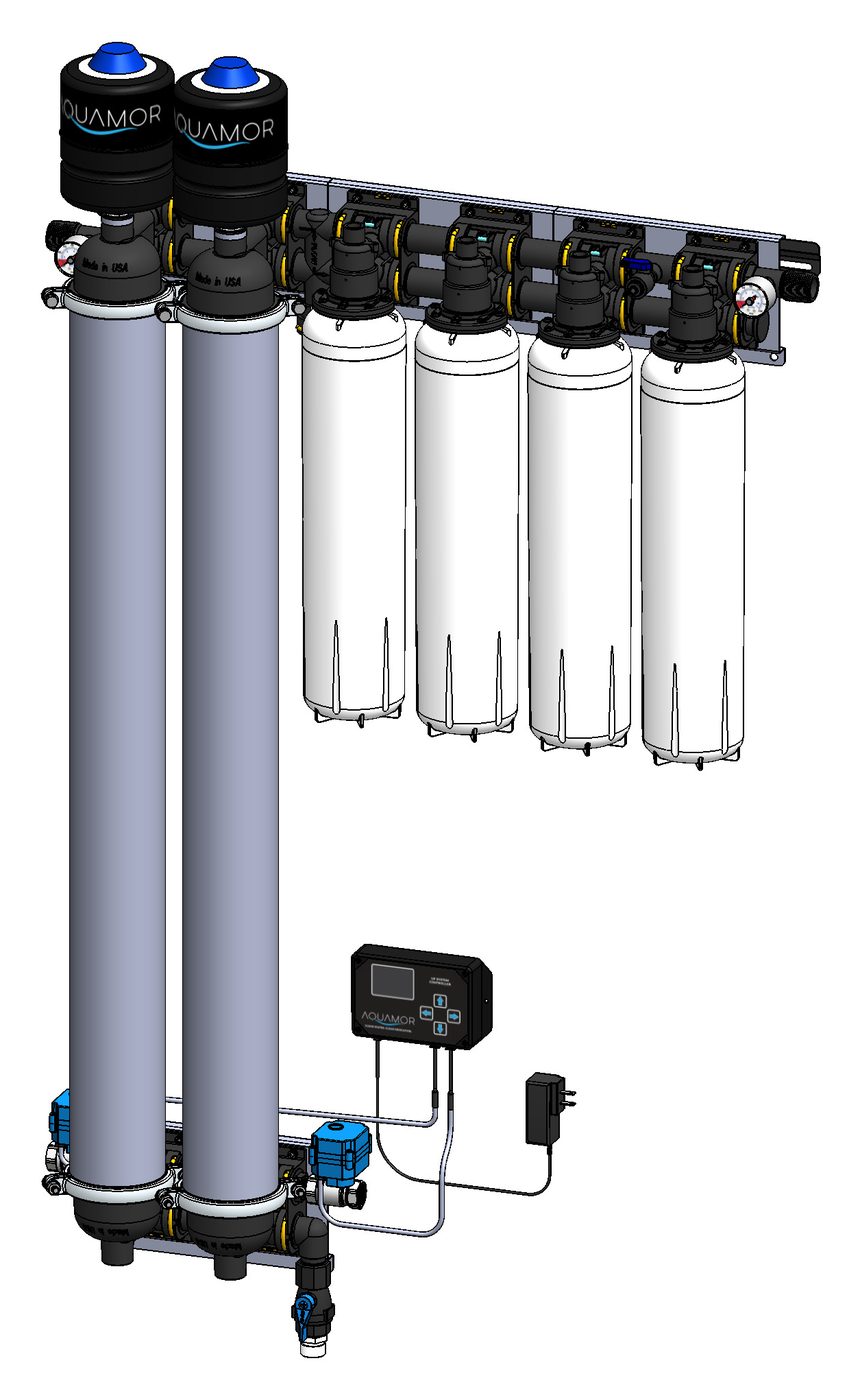

Estate — Installed view

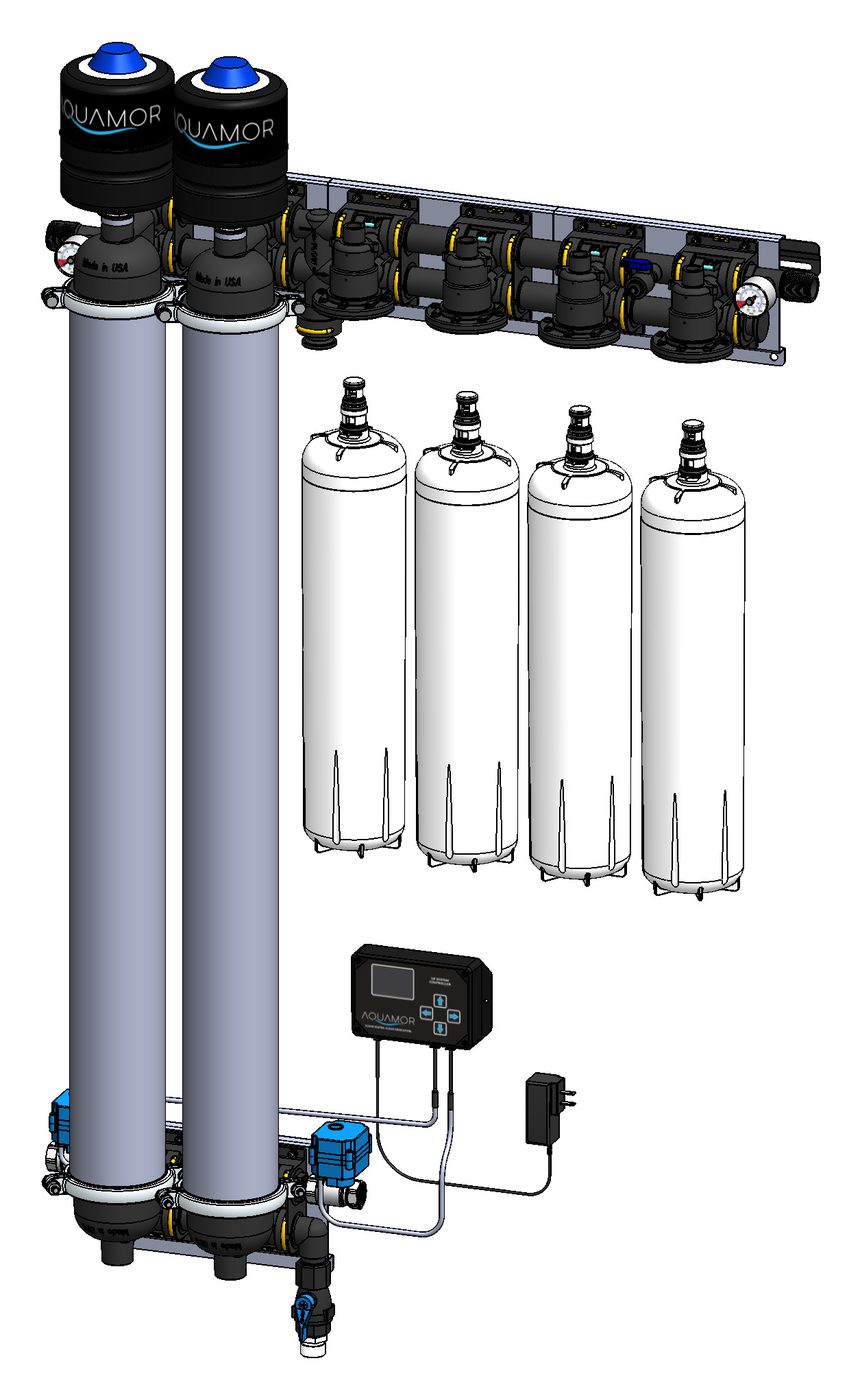

Estate — Cartridges detached

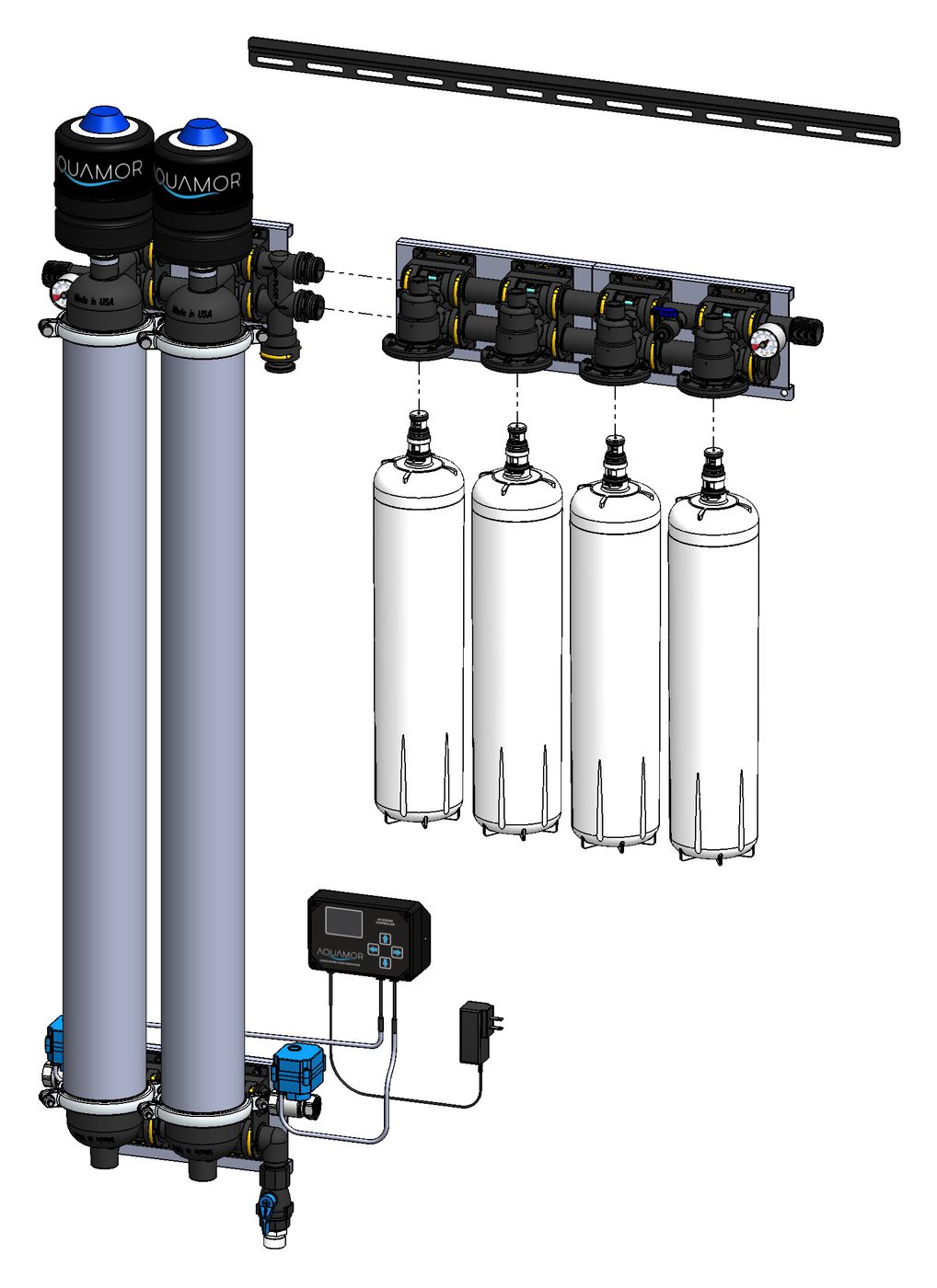

Estate — Exploded assembly
Estate — Dimensions

Front elevation · 1 of 5

About this suite

What it is

Estate is Heritage doubled, and the treatment is identical — two ultrafiltration membranes reducing bacteria, protozoa, cysts, most viruses, sediment, turbidity, microplastics and algae; four powdered carbon blocks taking out chlorine at 99.95%, chloramine, trihalomethanes, VOCs, solvents, pharmaceuticals, pesticides, herbicides and PFAS, and holding calcium and magnesium in solution against scale; and an included Wellspring reverse osmosis unit for lead, arsenic, fluoride and total dissolved solids at the kitchen tap. What changes is scale rather than chemistry. Two membranes feed four cartridges instead of one feeding two, peak flow goes from 15 gallons a minute to 30, and the post-filter load is shared across four cartridges — each one NSF rated to 265,000 gallons.

Read the full detailShow less

Flow is the reason most people end up here. Fifteen gallons a minute is plenty for a family home, but it is not plenty for five bathrooms, a pool fill, an irrigation zone and a laundry running together. When demand outruns the system, the symptom is not dirty water — it is pressure falling off at whichever fixture is furthest from the main, usually the upstairs shower, usually at the worst moment. Estate runs on 1-inch connections throughout rather than 3/4-inch, so the plumbing itself is not the restriction either.

Both membranes are also doing protective work, and in a large house that matters more rather than less. Sediment, turbidity and colloidal material are stopped at the wall, so none of it reaches the four carbon cartridges, and none of it reaches the plumbing, the appliances or the water heater beyond them. The cartridges are fed clean water and spend their capacity on chemistry instead of straining dirt.

The capacity matters just as much for a home that uses a lot of water. Four cartridges sharing the load means each one lasts as long as it would in a smaller home, so a big household is not changing filters twice as often as everyone else.

The treatment itself is identical to Heritage, and that is deliberate — the same NSF/ANSI 53 certified cyst reduction, the same carbon chemistry taking out chlorine, chloramine, trihalomethanes, VOCs, solvents, pharmaceuticals, pesticides and PFAS, the same food-grade polyphosphate scale control, the same permanent self-cleaning membranes. You are buying more of it, not something different. If your water is difficult rather than merely plentiful, more of the same is the wrong answer, and Providence is the right one.

Estate ships with a Wellspring reverse osmosis unit for the kitchen tap, included.

What's in the set

This suite ships as a matched system. Components are not sold separately.

  • 2 x Aquamor UF-4420 complete ultrafiltration stages (PN 108036), each with controller, motorized valve, gauges and tank, 4″ x 40″ 304 stainless, vertical mount
  • BGX-C quad post-filter manifold (PN 105225) with 4 x BGX-4925PHC cartridges (PN 105299), pre-installed
  • UF system controller (PN 503041) with LCD display and 24V power adapter
  • Motorized isolation valve, check valve and drain flow control
  • System pressure gauge (PN 500007) and ball valve set
  • Wall-mount bracket for the quad manifold (PN 509073)
  • Wellspring 5-stage reverse osmosis drinking-water unit (WM5-50), included
  • Owner’s manual and full step-by-step installation instructions, included

Best for: Large homes with heavy simultaneous demand, where 15 GPM would leave pressure short at the far fixtures. Ships with a Wellspring reverse osmosis drinking-water unit included — a $565 value at no extra cost.

Sized for

Homes of about 4 bathrooms and up — roughly 3,500 sq ft and larger

Choose it when: Four or more bathrooms can draw at once, or irrigation or a pool runs off the treated line.

Thirty gallons a minute on 1″ connections is what a home needs once four or more bathrooms can draw together, and it is the right answer at any size if irrigation, a pool fill or a shop tap runs off the treated line. Below that, the extra flow sits unused and Heritage treats the water identically — most homes genuinely do not need this tier.

A guide, not a rule — we confirm flow and pressure at your tap before anything is ordered.

Need the filters for this system?

Replacement sets are matched to each suite and ship on schedule.

Specifications

ModelPN 117233
Sized forAbout 4 baths and up · roughly 3,500 sq ft and larger (30 GPM peak demand)
ConfigurationDual 40″ UF membranes + quad cartridge post-filter
UF membrane stage2 x UF-4420 complete stage (PN 108036), 4″ x 40″ · 0.015 micron nominal · replacement membranes PN 305511 · replacement vessel PN 305510
Drinking water ROWellspring (WM5-50) included
Nominal filtration5.0 micron (post-filter)
Service flow rate30 GPM (113.56 LPM) — both stages rated 30 GPM
Rated capacity265,000 gal per post-filter cartridge, across four cartridges (NSF rating is per cartridge; the assembly is not separately NSF rated)

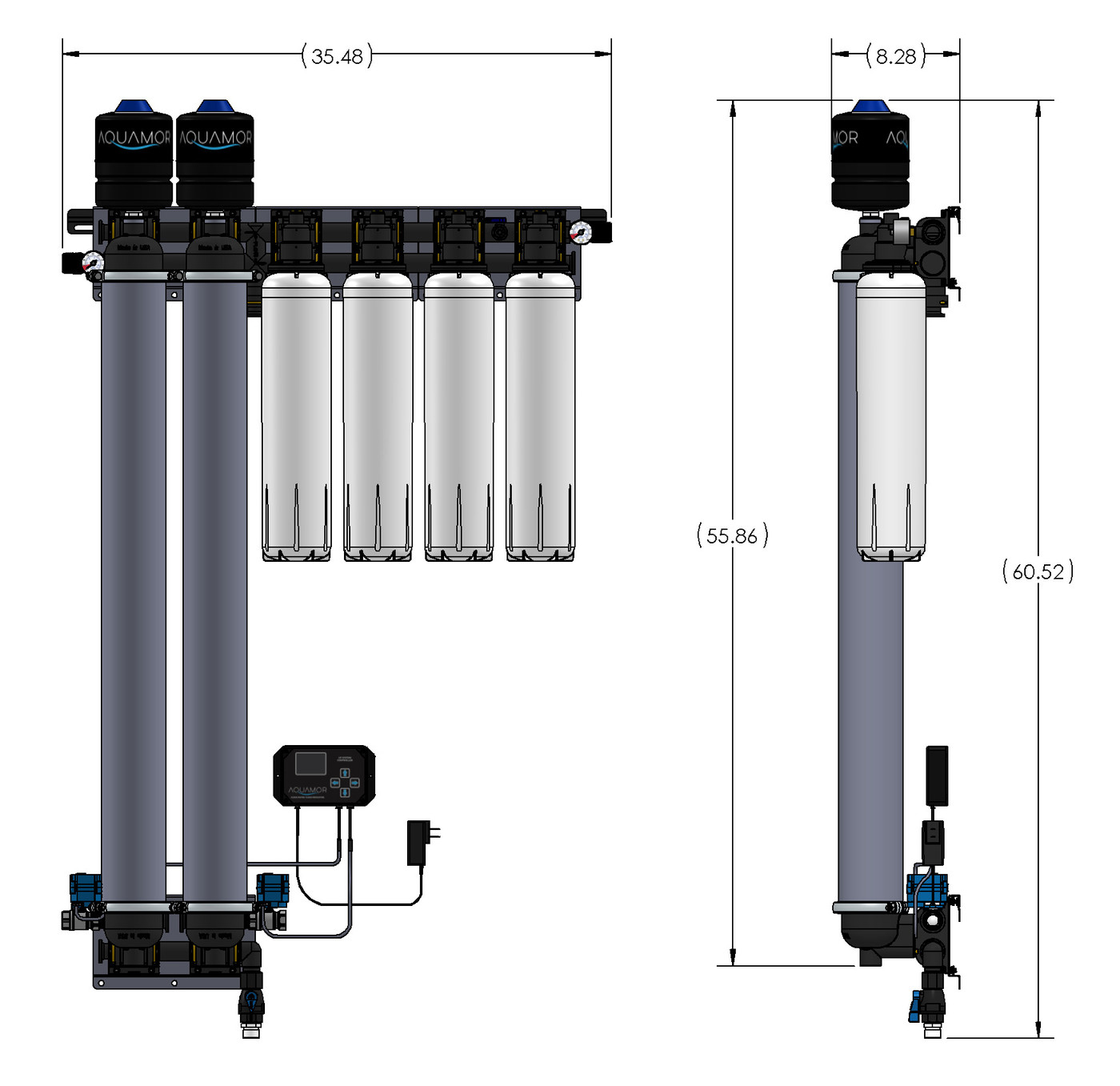

Dimensions35.48″ W x 8.28″ D x 60.52″ H — wall-mounted system, excluding the RO unit, tank and faucet
Operating pressure20–125 psi · below 50 psi inlet, a booster pump is required
Operating temp40–100°F
Port size1″ NPT
ElectricalController, plug-in adapter
Drain connection3/4″ NPT, sloped to drain with a 2″ air break
Self-clean flushAutomatic, hourly by default — 15 seconds, programmable 5–60
Membrane lifeUp to 5 years, source-water dependent
MountingWall-mounted
Chlorine reduction99.95% at the post-filter cartridges
Scale controlFood-grade polyphosphate sequestration (a product feature, not a certified claim — the cartridge certification covers chlorine, taste and odor only)
CertificationUF — NSF/ANSI 53 cyst (>50,000/mL challenge, 99.99% average achieved) · Cartridges — NSF/ANSI 42, CSA B483.1. This system is not a microbiological purifier and will not make unsafe water safe to drink.
Cartridge interval265,000 gal per cartridge (order PN 105299), or per local water conditions
Water supplyCold water only — do not connect to a hot water line
Warranty5-year limited on the complete system · 1 year on replacement parts, including membranes and cartridges · 90 days on fittings, clips, valves and drain saddles · all from date of purchase
